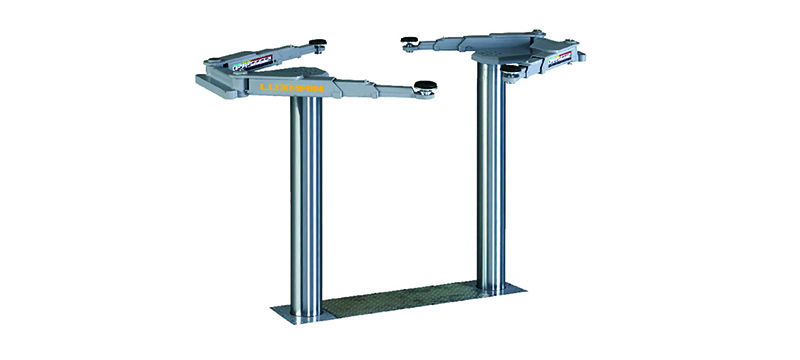

Double post inground lift L4800(A) carrying 3500kg
LUXMAIN double post inground lift is driven by electro-hydraulic. The main unit is completely hidden under the ground, and the supporting arm and power unit are on the ground. After the vehicle is lifted, the space at the bottom, at hand and above the vehicle is completely open, and the man-machine environment is good.This fully saves space, makes work more convenient and efficient, and the workshop environment is clean and safe. Suitable for vehicle mechanics.
It is suitable for lifting cars and SUVs with a weight less than 3500kg.Suitable for vehicle maintenance operations.
The center distance between the two lifting post is 1360mm, so the width of the main unit is small, and the amount of equipment foundation excavation is small, which saves basic investment.
After the vehicle is lifted, the surrounding and upper spaces are completely open, and the bottom part is less obscured, and maintenance operations are convenient. The workshop environment is clean and standard.
Equipped with a telescopic rotatable support arm to lift the skirt of the vehicle. The lifting range is large and can be adapted to 80% of the models on the market.
The supporting arm is welded by steel pipe and steel plate, which has high mechanical strength.
The main unit is made by welding steel pipe and steel plate.
The built-in rigid synchronization system ensures that the lifting movements of the two lifting posts are absolutely synchronized, and there is no leveling between the two posts after the equipment is debugged.
Equipped with mechanical and hydraulic safety devices.
Equipped with the highest limit switch to prevent misoperation from causing the vehicle to rush to the top.
L4800(A) has obtained CE certification.
|Load sharing||max. 6:4 ior against drive-odirection|
|Max. Lifting height||1850mm|
|Entire Lifting (Dropping)Time||40-60sec|
|Supply voltage||AC380V/50Hz（Accept customization）|
|The pressure of the air source||0.6-0.8MPa|
|Capacity of oil tank||12L|
